Compare two revisions
See what changed between two tags or branches: added, removed and changed components, with a narrated tour of the difference.
Open source · no sign-up · runs in your browser
See how any GitHub repo works.
Paste a link and get an animated, narrated architecture tour in seconds. Every box and arrow links to real code, so nothing is made up.
Try:
- 0 dependencies
- 11 languages
- MIT licensed
- 100% in your browser
Or choose from a GitHub account
Private repo, or hit GitHub's rate limit? Add a token
or paste a token below
The token is only ever sent to api.github.com from your browser. Nothing is uploaded to any other server. Use a
fine-grained token
with read-only Contents access.

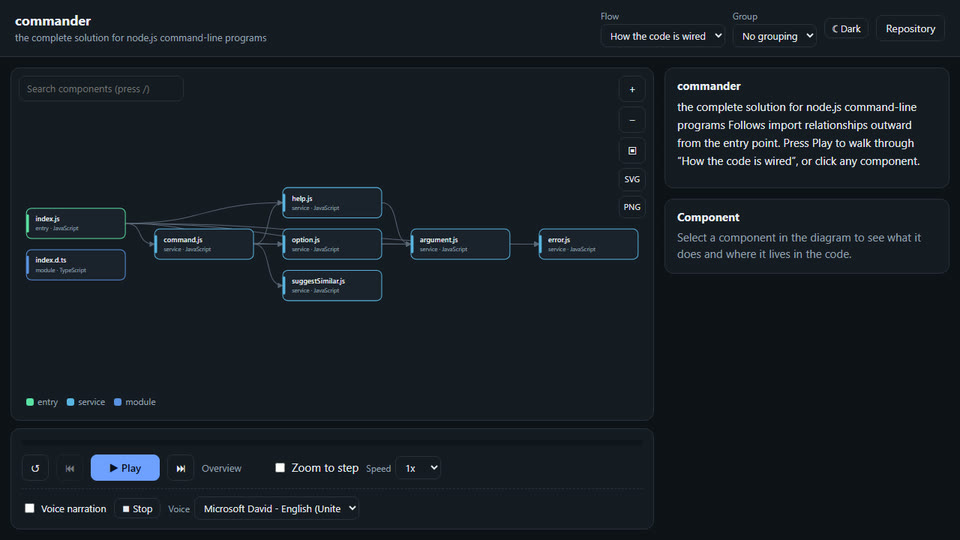

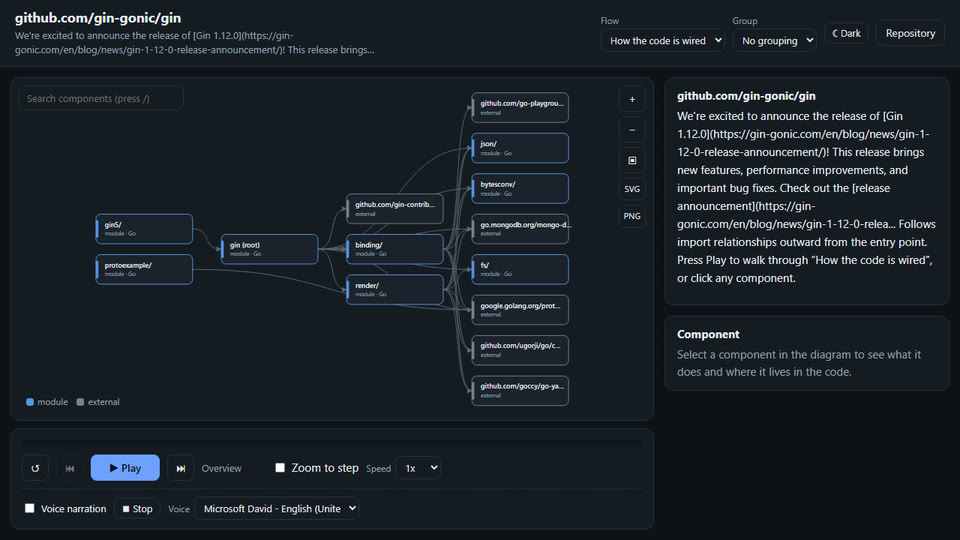

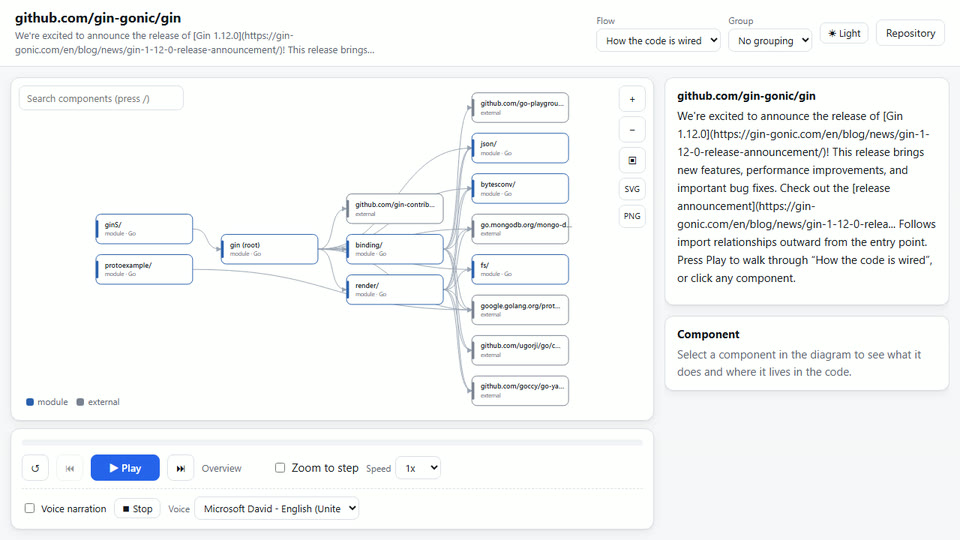

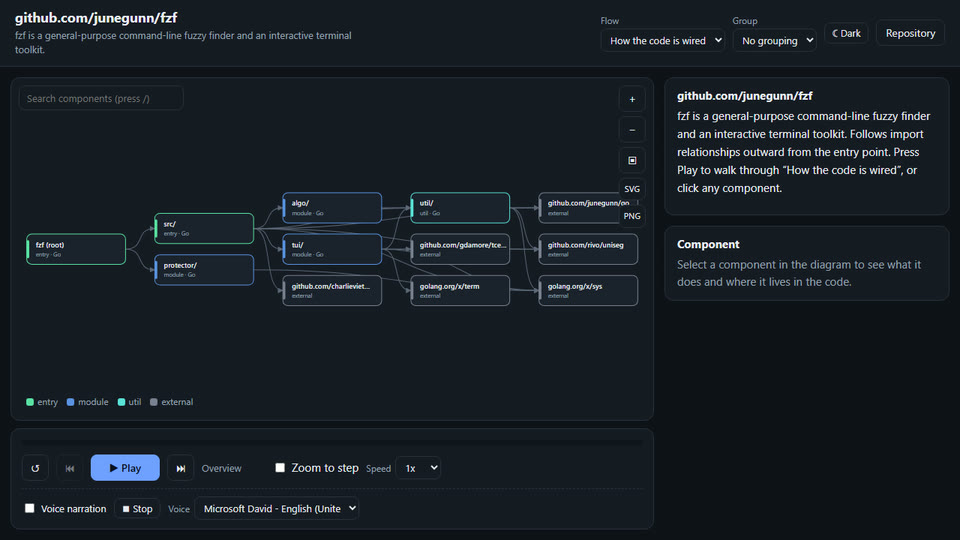

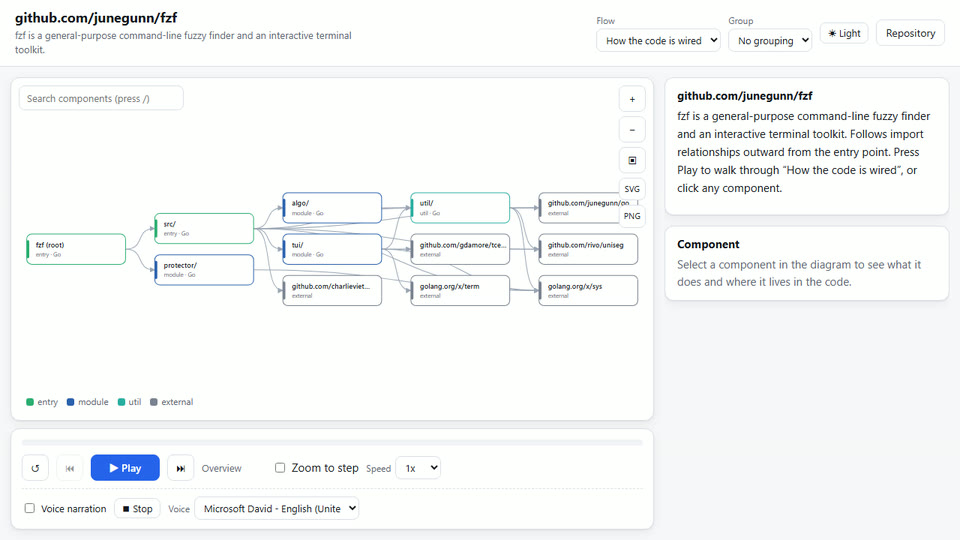

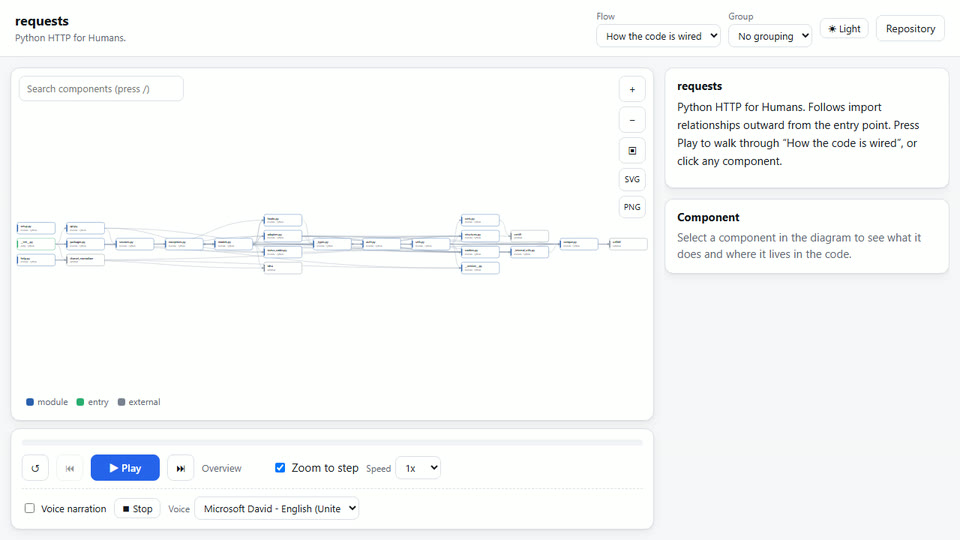

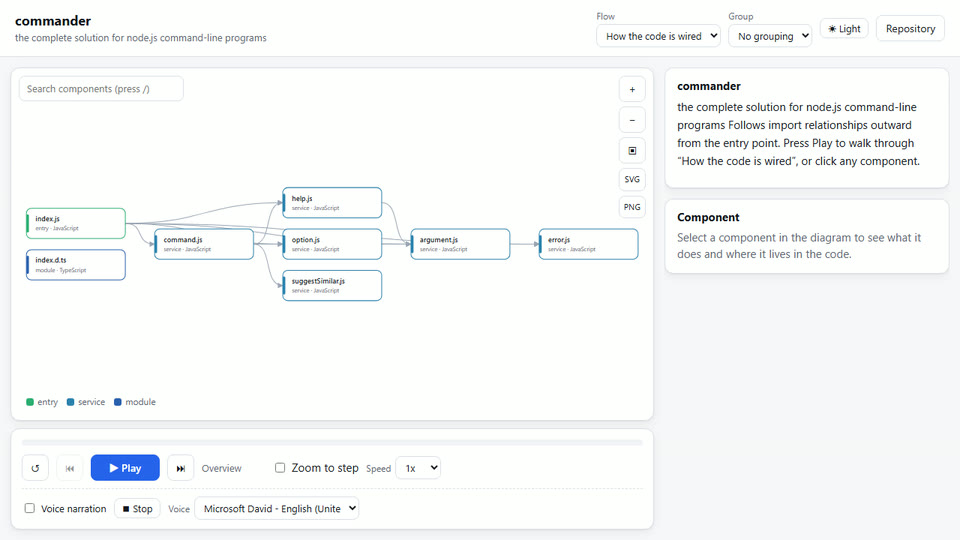

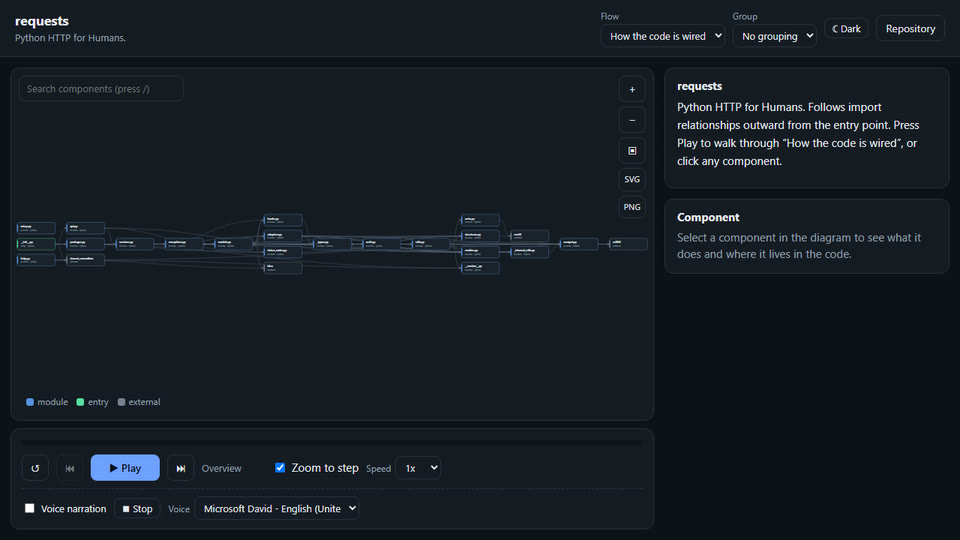

Real tours, one click
Try it on repositories you know
Each one is generated live in your browser from the code on GitHub. Nothing here is a mock-up.
Or compare two versions: highlights what was added, removed and changed.
What you get
More than a diagram
Request tracing
Follow a fetch call from the frontend to the server route that handles it. Linked only on an exact method and path match.
Monorepos
One component per workspace package, or open a single folder such as owner/repo:apps/web.
Search, group, export
Find components with /, group into swimlanes, and export SVG, PNG, Mermaid or PlantUML.
Narrated tours
Captions and your browser’s own voice, with playback controls and a shareable link to any step.
Private by design
Analysis runs in your browser and the tour plays in a sandboxed frame. Nothing is uploaded and no keys are needed, unless you choose the optional AI narration with your own key.
Import graphs for
JavaScript / TypeScriptPythonGoJavaKotlinRustC#RubyPHPC / C++Dart
more on the roadmap →
How it works
- 1
Reads the repo
Your browser fetches the file tree and source files straight from GitHub. No server of ours ever sees them.
- 2
Finds the structure
It resolves real imports, entry points and dependencies, then checks every claim against the actual files.
- 3

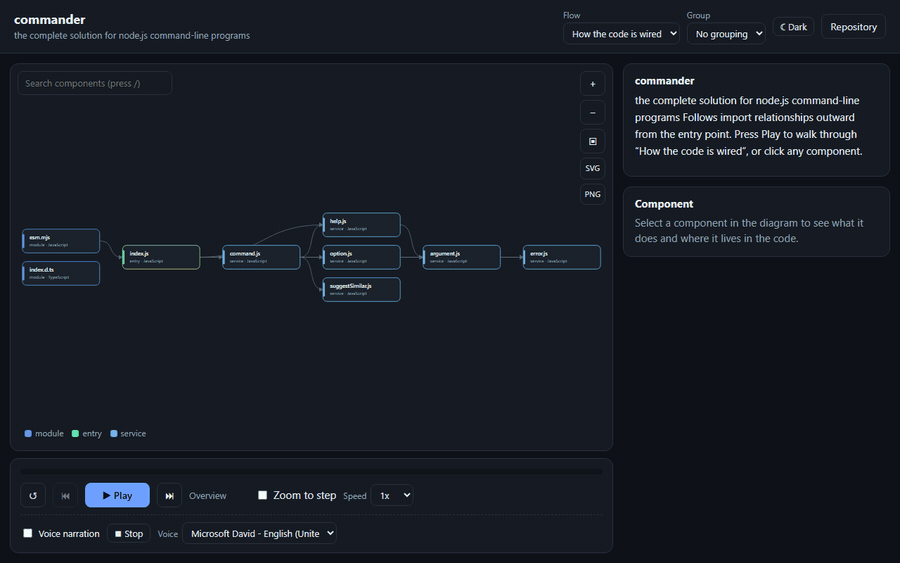

Plays the tour
Watch the flow light up step by step with captions and voice narration, and click any part to see its code.
If the repo already publishes its own tour (docs/architecture/), you get that one, curated by its authors.
Bring it to your own repo
The website gives you an automatic picture. Add the skill or the action to publish a curated tour with narration written from your actual code.
🤖 Claude Code skill
Ask Claude Code to “generate an interactive architecture for this project.” It reads your code, writes the narration, and validates every claim.
git clone https://github.com/Kaushik2210/gitVisualise gitvisualise
node gitvisualise/skills/repo-architecture/scripts/gitvisualise.mjs install-skill⌨️ Command line
One command, zero dependencies, Node 18+. Works on local folders and GitHub URLs.
node gitvisualise/skills/repo-architecture/scripts/gitvisualise.mjs all .⚙️ GitHub Action
Regenerate on every push and publish to GitHub Pages. Curated edits are preserved.
- uses: actions/checkout@v4
- uses: Kaushik2210/gitVisualise@main
with:
out: docs/architecture
